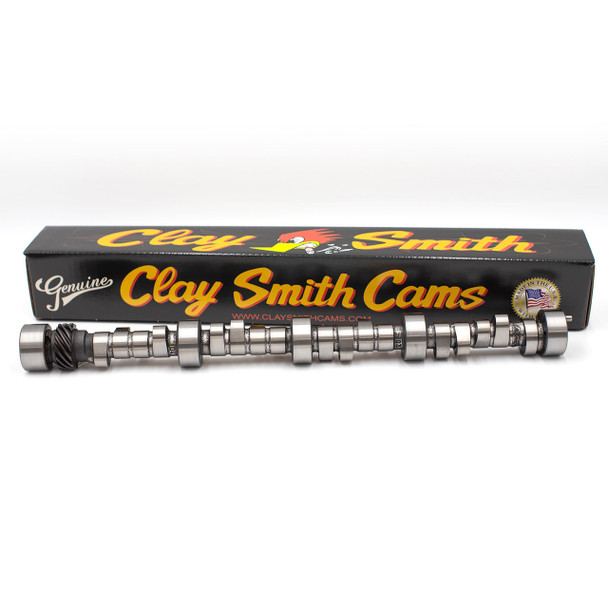

Ford - 221, 260, 289, 302 V8 - Hydraulic Rollers Cam - Grind #HR-280-8-CSR
Download and Print your Cam Specification Card (PDF) - Click Here
Clay Smith Cams recommends degreeing your Camshaft in on the #1 Intake using the Lobe Centerline Method.
Find our Best-Selling Degree Kit here.
If you need help degreeing in your camshaft, please feel free to call our Tech Line at 714-523-0530.
*Some parts are not legal for use in California or other states with similar laws/regulations.
*CAMS WITH MORE THAN .450" LIFT REQUIRES CUTTING VALVE GUIDES FOR ADDITIONAL RETAINER TO SEAL CLEARANCE.
** CLAY SMITH CAMS ALWAYS RECOMMENDS CHECKING YOUR VALVE TO PISTON CLEARANCE !
Videos
View AllClose
Additional Information
Cam Type: |
Hydraulic Rollers |
Make: |
Ford |
Intake Duration @ .050: |
221 |
Exhaust Duration @ .050: |
221 |
Advertised Intake Duration: |
280 |
Advertised Exhaust Duration: |
280 |
Lobe Center: |
108 |
Valve Lift with Factory Rocker Arm Ratio: |
.544 int / .544 exh |
Engine: |
221, 260, 289, 302 V8 |
