Clay Smith Cams

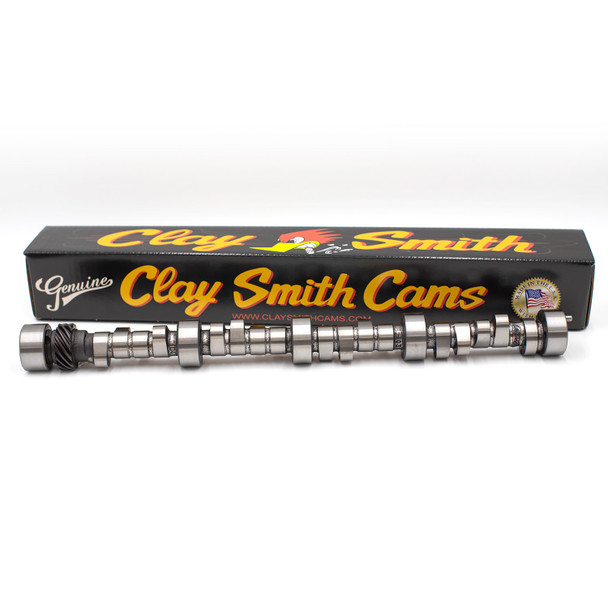

HR-9600-7-CSR Big Block Chevrolet Hydraulic Rollers Camshaft

(1 review) Write a Review
SKU:
160-3105
Weight:
11.00 LBS
Width:
25.00 (in)
Height:
5.00 (in)
Depth:
4.00 (in)
  • Clay Smith BBC Hydraulic Rollers Cam
  • HR-9600-7-CSR
  • Cam Card #160-3105
$462.65
Frequently bought together:

Description

Chevrolet - Big Block - Hydraulic Rollers Cam - Grind #HR-9600-7-CSR

BBC 477 to 496 with 4.25” stroke with AFR 290 or 305 heads to a max of 6200 rpm.

  • This cam will produce over 600HP with a single plane and right at 600HP with an air-gap intake.
  • Single plane will make 25 more HP and sacrifice 10#/ft of torque.
  • Carburetor of choice is a 950HP 4150.
  • 2” headers are recommended.
  • Be sure you have change driveshaft yokes and upgraded rear gears.
  • Muncie 4 speed, use at your own risk.
  • 900 Idle RPM

*** May Require a Vacuum Canister on Some Applications

Download and Print your Cam Specification Card (PDF) - Click Here

Clay Smith Cams recommends degreeing your Camshaft in on the #1 Intake using the Lobe Centerline Method.

Find our Best-Selling Degree Kit here.

If you need help degreeing in your camshaft, please feel free to call our Tech Line at 714-523-0530.

*Some parts are not legal for use in California or other states with similar laws/regulations.




View AllClose

Additional Information

Cam Type:
Hydraulic Rollers
Make:
Big Block Chevrolet
Intake Duration @ .050:
237
Exhaust Duration @ .050:
241
Advertised Intake Duration:
296
Advertised Exhaust Duration:
300
Lobe Center:
107
Valve Lift with Factory Rocker Arm Ratio:
.620 int / .569 exh
View AllClose

1 Review

  • 5

    496 BBC Cam

    Posted by David Ross on 4th May 2023

    You guys weren’t joking when you you said it would it would bring my car to life. It’s a handful on the street for sure!!!
