Clay Smith Cams

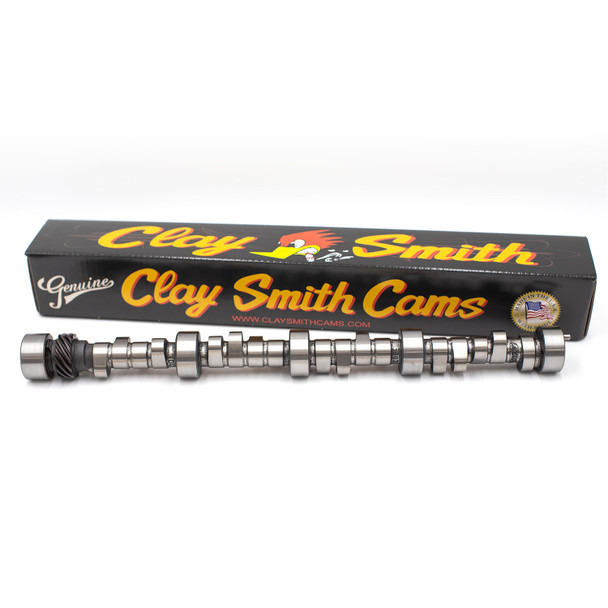

HR-9294-8-CSR - SBC 377 to 390 CID AFR 190 to 210 Head - Hydraulic Rollers Camshaft

(1 review) Write a Review
SKU:
150-3103
Weight:
11.00 LBS
Width:
25.00 (in)
Height:
5.00 (in)
Depth:
4.00 (in)
  • Clay Smith Cams Hydraulic Rollers
  • HR-9294-8-CSR
  • Cam Specifications Card
$430.35

Description

Chevrolet - Small Block - Hydraulic Rollers Camshaft - Grind #HR-9294-8-CSR
Max Power 6200 rpm Peak torque 3600

    • SBC 377 to 390 CID AFR 190 to 210 Head
    • Max Power 6200 rpm Peak torque 3600
    • This cam is designed for engines using 3.750” stroke with the AFR Heads and their high Intake the Exhaust flow ratio.
    • This cam maximizes the power potential of these heads by taking advantage of the RAM Effect caused by piston velocity at low rpm.
    • Increase header size of 1.750” is highly suggested to take full advantage of the power band of this camshaft.
    • Adding 1.6 ratio to cam will increase rpm to 6400.
    • We recommend a 3000 stall. W
    • We recommend a 850CFM carb and a minimum of 10 to 1.

Download and Print your Cam Specification Card (PDF) - Click Here

Clay Smith Cams recommends degreeing your Camshaft in on the #1 Intake using the Lobe Centerline Method.

Find our Best-Selling Degree Kit here.

If you need help degreeing in your camshaft, please feel free to call our Tech Line at 714-523-0530.

*Some parts are not legal for use in California or other states with similar laws/regulations.




View AllClose

Additional Information

Cam Type:
Hydraulic Rollers
Make:
Small Block Chevrolet
Intake Duration @ .050:
233
Exhaust Duration @ .050:
235
Advertised Intake Duration:
292
Advertised Exhaust Duration:
294
Lobe Center:
108
Valve Lift with Factory Rocker Arm Ratio:
.546 int / .510 exh
View AllClose

1 Review

  • 5

    Custom cam without the high price

    Posted by Larry Price on 1st Dec 2016

    I bought this cam to go in my zz383 that I've upgraded with afr heads. This cam is the 3rd roller I've bought. The other 2 were off the shelf from big name cam companies. They all have had the same casting numbers on the cores, but this clay smith cam is the only one that was definitely touched by hand. It has had all the rough edges polished off and had some type of dark coating that the others did not. Came well protected and had no issues during shipping. I wish I had found clay cams years ago, it would have saved me from picking out a off the shelf cam that was not optimal for my engine.
