Description

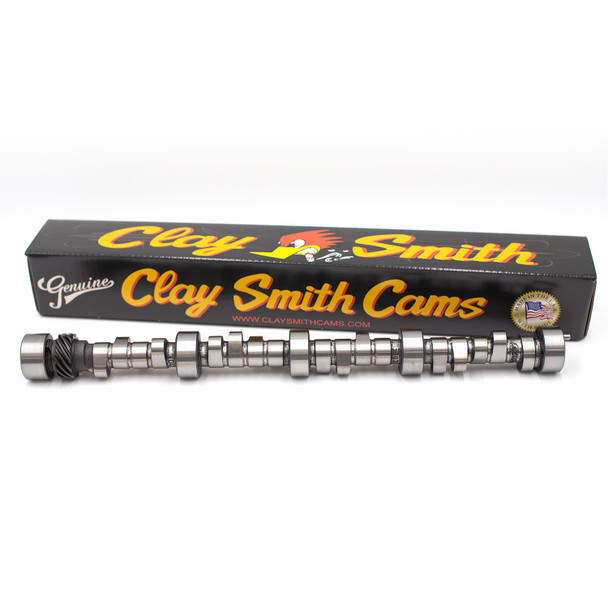

Chevrolet - Small Block *Retro - Hydraulic Roller - Grind #HR-8294-7-CSR
SBC 370 to 390 CID Vortec 185/205 GM Fast Burn Head max power 5800-6000 rpm Peak Torque 3200-3600.
This cam is for the stroker build using the GM heads. Hotrodders with 4 speeds or stall speed of 2800 will absolutely annihilate tires with this Woodpecker stick. Must have minimum of 1 5/8” headers but 1.750” would be best for engine that will see constant rpm blast. Use of a 1.6 on both intake and exhaust will raise power band 200 rpm more. We recommend a “Dirty Bird” 850CFM carb and minimum of 9 to 1.
Download and Print your Cam Specification Card (PDF) - Click Here
Clay Smith Cams recommends degreeing your Camshaft in on the #1 Intake using the Lobe Centerline Method.
Find our Best-Selling Degree Kit here.
If you need help degreeing in your camshaft, please feel free to call our Tech Line at 714-523-0530.
*Some parts are not legal for use in California or other states with similar laws/regulations.
Additional Information
Cam Type: |
Hydraulic Rollers |
Make: |
Small Block Chevrolet |
Intake Duration @ .050: |
223 |
Exhaust Duration @ .050: |
235 |
Lobe Center: |
107 |
Valve Lift with Factory Rocker Arm Ratio: |
.544 int / .525 exh |
